View Issue Details
ID | Project | Category | View Status | Date Submitted | Last Update |
---|---|---|---|---|---|
0000091 | Kolibri OS (trunk) | Drivers | public | 2015-01-09 13:54 | 2015-01-18 21:54 |
Reporter | yogev_ezra | Assigned To | hidnplayr | ||
Priority | normal | Severity | major | Reproducibility | always |
Status | assigned | Resolution | open | ||
Platform | Any x86 / Любой x86 | OS | KolibriOS | OS Version | SVN autobuilds |
Product Version | SVN build / автосборка SVN | ||||
Target Version | SVN build / автосборка SVN | ||||
Summary | 0000091: Realtek RTL8168 PCIe Gigabit Ethernet - doesn't work in Windows 7 after booting KolibriOS (requires power supply disconnection) | ||||
Description | Motherboard model ASRock Q2900-ITX (SoC Intel Pentium J2900) with Realtek RTL8168 PCIe Gigabit Ethernet controller - doesn't work in Windows 7 after booting KolibriOS (requires power supply disconnection) | ||||
Steps To Reproduce | 1. Boot Windows 7 on ASRock Q2900-ITX and have proper driver installed for Realtek RTL8168 PCIe Gigabit Ethernet controller - test that network/internet are working properly. 2. Reboot to KolibriOS - Realtek RTL8168 doesn't work properly 3. Reboot again to Windows 7 - now Realtek RTL8168 doesn't work in Windows 7 as well If you do a cold reboot (disconnect power supply from the motherboard), then Realtek RTL8168 starts working in Windows 7 again. | ||||
Tags | No tags attached. | ||||
SVN revision / ревизия SVN | SVN #5341 | ||||
Type of distribution / Тип дистрибутива | img / образ дискеты | ||||
|
|
|
|
|
RTL8168_DEBUG_LOG.TXT (4,393 bytes)
K : using mwait for idle loop K : kernel SVN r5365 K : 4 CPU detected K : IDE controller programming interface 0001018A K : BAR0 IDE base addr 01F0 K : BAR1 IDE base addr 03F4 K : BAR2 IDE base addr 0170 K : BAR3 IDE base addr 0374 K : BAR4 IDE controller register base addr F030 K : IDE Interrupt 0A K : Channel 1 Disk 0 K : Dev: ST31500341AS K : PIO possible modes 03 K : PIO set mode 01 K : Multiword DMA possible modes 07 K : Multiword DMA set mode 00 K : Ultra DMA possible modes 7F K : Ultra DMA set mode 05 K : Channel 1 Disk 1 K : Device not found K : Channel 2 Disk 0 K : Dev: HL-DT-ST DVDRAM GH22NS50 K : PIO possible modes 03 K : PIO set mode 00 K : Multiword DMA possible modes 07 K : Multiword DMA set mode 00 K : Ultra DMA possible modes 3F K : Ultra DMA set mode 05 K : Channel 2 Disk 1 K : Device not found K : IDE CH1 DMA enabled K : IDE CH2 PIO, because ATAPI drive present K : Attach Interrupt 14 Handler 8003198C K : Set IDE IRQ14 return code 8005BEC0 K : Attach Interrupt 15 Handler 800319CC K : Set IDE IRQ15 return code 8005BED4 K : clear_pci_ide_interrupts: port[F032] = 20 -> 20; port[F03A] = 20 -> 20 Intel videocard detected, PciId=8086:0F31, which is unknown K : has_ownership K : HCSPARAMS=00200008, HCCPARAMS=00036881 K : Attach Interrupt 11 Handler 80B1E8E6 K : EHCI controller at 00:E8 with 8 ports initialized K : Attach Interrupt 1 Handler 80032DF0 K : IRQ1 return code 8005BEFC K : Attach Interrupt 12 Handler 80B2C546 L: /SYS/LOADDRV Param: RDC L: /SYS/NETWORK/NETCFG Param: A RTL8169: Loading driver RTL8169: Hooking into device, dev:0, bus:3, irq:4, addr:0000E000 RTL8169: probe RTL8169: init_board RTL8169: init_board: TxConfig & 0x7c800000 = 0x4C000000 RTL8169: init_board: chipset=2 RTL8169: MAC = D0-50-99-37-A6-DF RTL8169: hw_PHY_config: priv.mcfg=3, priv.pcfg=1 L: /SYS/NETWORK/ZEROCONF Param: Zero-config service loaded L: /SYS/MEDIA/PALITRA Param: H 007DCEDF 003C427F L: /SYS/@PANEL Param: L: /SYS/@DOCKY Param: L: /SYS/SETUP Param: BOOT RTL8169: Set MAC Reg C+CR Offset 0x82h = 0x01h L: /SYS/@ICON Param: RTL8169: auto-negotiation complete RTL8169: resetting RTL8169: init_ring RTL8169: hw_start RTL8169: Attaching int handler to irq 4 K : Attach Interrupt 4 Handler 80B3E558 RTL8169: Waiting for chip to reset... RTL8169: done! RTL8169: Set MAC Reg C+CR Offset 0xE0: bit-3 L: /SYS/@SS Param: ASSM L: /SYS/TMPDISK Param: A0 RTL8169: set_rx_mode trying to add disk its size is not specified, 10% from free RAM will be used new DiskSize: 250 MB operation completed successfully RTL8169: init OK! RTL8169: INT RTL8169: Device: 80B3A000 Status: 0820 L: /SYS/SEARCHAP Param: Trying to contact DHCP server RTL8169: Transmitting packet, buffer:80B7A000, size:304 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008 RTL8169: Using TX desc: 80B3A100 No answer from DHCP server RTL8169: Transmitting packet, buffer:80B36000, size:304 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008 RTL8169: Using TX desc: 80B3A110 No answer from DHCP server RTL8169: Transmitting packet, buffer:90657000, size:304 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008 RTL8169: Using TX desc: 80B3A120 No answer from DHCP server RTL8169: Transmitting packet, buffer:80B91000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A130 Link Local IP assigned: 169.254.158.10 RTL8169: Transmitting packet, buffer:90658000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A100 RTL8169: Transmitting packet, buffer:90659000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A110 RTL8169: Transmitting packet, buffer:9065A000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A120 Searchap: additional partition is not found! L: AUTORUN.DAT processed RTL8169: Transmitting packet, buffer:80B8E000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A130 RTL8169: Transmitting packet, buffer:80B8F000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A100 Exiting |
|
RTL8168_DEBUG_LOG2.TXT (4,339 bytes)
K : using mwait for idle loop K : kernel SVN r5365 K : 4 CPU detected K : IDE controller programming interface 0001018A K : BAR0 IDE base addr 01F0 K : BAR1 IDE base addr 03F4 K : BAR2 IDE base addr 0170 K : BAR3 IDE base addr 0374 K : BAR4 IDE controller register base addr F030 K : IDE Interrupt 0A K : Channel 1 Disk 0 K : Dev: ST31500341AS K : PIO possible modes 03 K : PIO set mode 01 K : Multiword DMA possible modes 07 K : Multiword DMA set mode 00 K : Ultra DMA possible modes 7F K : Ultra DMA set mode 05 K : Channel 1 Disk 1 K : Device not found K : Channel 2 Disk 0 K : Dev: HL-DT-ST DVDRAM GH22NS50 K : PIO possible modes 03 K : PIO set mode 00 K : Multiword DMA possible modes 07 K : Multiword DMA set mode 00 K : Ultra DMA possible modes 3F K : Ultra DMA set mode 05 K : Channel 2 Disk 1 K : Device not found K : IDE CH1 DMA enabled K : IDE CH2 PIO, because ATAPI drive present K : Attach Interrupt 14 Handler 8003198C K : Set IDE IRQ14 return code 8005BEC0 K : Attach Interrupt 15 Handler 800319CC K : Set IDE IRQ15 return code 8005BED4 K : clear_pci_ide_interrupts: port[F032] = 20 -> 20; port[F03A] = 20 -> 20 Intel videocard detected, PciId=8086:0F31, which is unknown K : has_ownership K : HCSPARAMS=00200008, HCCPARAMS=00036881 K : Attach Interrupt 11 Handler 80B1E8E6 K : EHCI controller at 00:E8 with 8 ports initialized K : Attach Interrupt 1 Handler 80032DF0 K : IRQ1 return code 8005BEFC K : Attach Interrupt 12 Handler 80B2C546 L: /SYS/LOADDRV Param: RDC L: /SYS/NETWORK/NETCFG Param: A RTL8169: Loading driver RTL8169: Hooking into device, dev:0, bus:3, irq:4, addr:0000E000 RTL8169: probe RTL8169: init_board RTL8169: init_board: TxConfig & 0x7c800000 = 0x4C000000 RTL8169: init_board: chipset=2 RTL8169: MAC = D0-50-99-37-A6-DF RTL8169: hw_PHY_config: priv.mcfg=3, priv.pcfg=1 L: /SYS/NETWORK/ZEROCONF Param: Zero-config service loaded L: /SYS/MEDIA/PALITRA Param: H 007DCEDF 003C427F L: /SYS/@PANEL Param: L: /SYS/@DOCKY Param: L: /SYS/SETUP Param: BOOT RTL8169: Set MAC Reg C+CR Offset 0x82h = 0x01h RTL8169: auto-negotiation complete RTL8169: resetting RTL8169: init_ring RTL8169: hw_start RTL8169: Attaching int handler to irq 4 K : Attach Interrupt 4 Handler 80B3E558 RTL8169: Waiting for chip to reset... RTL8169: done! L: /SYS/@ICON Param: RTL8169: Set MAC Reg C+CR Offset 0xE0: bit-3 L: /SYS/@SS Param: ASSM RTL8169: set_rx_mode L: /SYS/TMPDISK Param: A0 RTL8169: init OK! trying to add disk its size is not specified, 10% from free RAM will be used new DiskSize: 250 MB operation completed successfully Trying to contact DHCP server RTL8169: Transmitting packet, buffer:80B86000, size:304 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008 RTL8169: Using TX desc: 80B3A100 L: /SYS/SEARCHAP Param: No answer from DHCP server RTL8169: Transmitting packet, buffer:90656000, size:304 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008 RTL8169: Using TX desc: 80B3A110 No answer from DHCP server RTL8169: Transmitting packet, buffer:90657000, size:304 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008 RTL8169: Using TX desc: 80B3A120 No answer from DHCP server RTL8169: Transmitting packet, buffer:80B85000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A130 Link Local IP assigned: 169.254.158.10 RTL8169: Transmitting packet, buffer:9065D000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A100 RTL8169: Transmitting packet, buffer:9065E000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A110 RTL8169: Transmitting packet, buffer:9065F000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A120 Searchap: additional partition is not found! L: AUTORUN.DAT processed RTL8169: Transmitting packet, buffer:80B8F000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A130 RTL8169: Transmitting packet, buffer:80B35000, size:60 RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608 RTL8169: Using TX desc: 80B3A100 Exiting |
|
Tried the PING test for around 5 minutes - 0 ARP packets received. |
Date Modified | Username | Field | Change |
---|---|---|---|
2015-01-09 13:54 | yogev_ezra | New Issue | |
2015-01-09 13:54 | yogev_ezra | Status | new => assigned |
2015-01-09 13:54 | yogev_ezra | Assigned To | => hidnplayr |

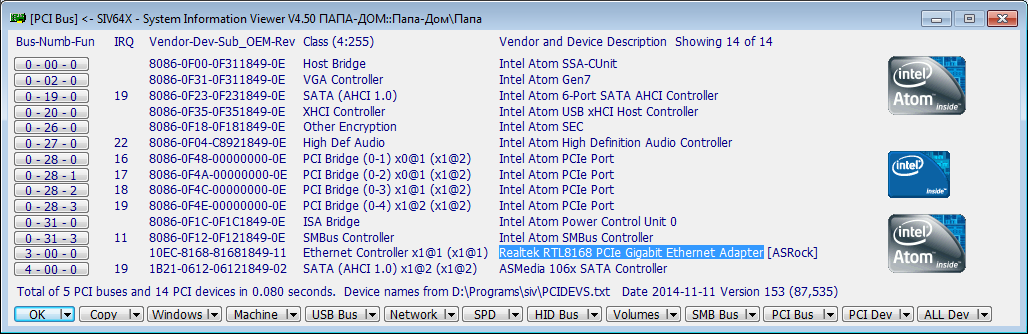

2015-01-09 13:54 | yogev_ezra | File Added: ScreenShot007.png | |
2015-01-09 13:55 | yogev_ezra | File Added: SIV_Q2900-ITX.7z | |
2015-01-09 20:47 | yogev_ezra | File Added: RTL8168_DEBUG_LOG.TXT | |
2015-01-09 20:47 | yogev_ezra | File Added: RTL8168_DEBUG_LOG2.TXT | |
2015-01-09 23:01 | yogev_ezra | Note Added: 0000169 |
