View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0000091Kolibri OS (trunk)Driverspublic2015-01-09 13:542015-01-18 21:54
Reporteryogev_ezra Assigned Tohidnplayr
PrioritynormalSeveritymajorReproducibilityalways
Status assignedResolutionopen
PlatformAny x86 / Любой x86OSKolibriOSOS VersionSVN autobuilds
Product VersionSVN build / автосборка SVN
Target VersionSVN build / автосборка SVN
Summary0000091: Realtek RTL8168 PCIe Gigabit Ethernet - doesn't work in Windows 7 after booting KolibriOS (requires power supply disconnection)
DescriptionMotherboard model ASRock Q2900-ITX (SoC Intel Pentium J2900) with Realtek RTL8168 PCIe Gigabit Ethernet controller - doesn't work in Windows 7 after booting KolibriOS (requires power supply disconnection)
Steps To Reproduce1. Boot Windows 7 on ASRock Q2900-ITX and have proper driver installed for Realtek RTL8168 PCIe Gigabit Ethernet controller - test that network/internet are working properly.
2. Reboot to KolibriOS - Realtek RTL8168 doesn't work properly
3. Reboot again to Windows 7 - now Realtek RTL8168 doesn't work in Windows 7 as well
If you do a cold reboot (disconnect power supply from the motherboard), then Realtek RTL8168 starts working in Windows 7 again.
TagsNo tags attached.
SVN revision / ревизия SVNSVN #5341
Type of distribution / Тип дистрибутиваimg / образ дискеты

Activities

yogev_ezra

2015-01-09 13:54

manager


yogev_ezra

2015-01-09 13:55

manager

SIV_Q2900-ITX.7z (147,384 bytes)

yogev_ezra

2015-01-09 20:47

manager

RTL8168_DEBUG_LOG.TXT (4,393 bytes)
K : using mwait for idle loop
K : kernel SVN r5365
K : 4 CPU detected
K : IDE controller programming interface 0001018A
K : BAR0 IDE base addr 01F0
K : BAR1 IDE base addr 03F4
K : BAR2 IDE base addr 0170
K : BAR3 IDE base addr 0374
K : BAR4 IDE controller register base addr F030
K : IDE Interrupt 0A
K : Channel 1 Disk 0
K : Dev: ST31500341AS
K : PIO possible modes 03
K : PIO set mode 01
K : Multiword DMA possible modes 07
K : Multiword DMA set mode 00
K : Ultra DMA possible modes 7F
K : Ultra DMA set mode 05
K : Channel 1 Disk 1
K : Device not found
K : Channel 2 Disk 0
K : Dev: HL-DT-ST DVDRAM GH22NS50
K : PIO possible modes 03
K : PIO set mode 00
K : Multiword DMA possible modes 07
K : Multiword DMA set mode 00
K : Ultra DMA possible modes 3F
K : Ultra DMA set mode 05
K : Channel 2 Disk 1
K : Device not found
K : IDE CH1 DMA enabled
K : IDE CH2 PIO, because ATAPI drive present
K : Attach Interrupt 14 Handler 8003198C
K : Set IDE IRQ14 return code 8005BEC0
K : Attach Interrupt 15 Handler 800319CC
K : Set IDE IRQ15 return code 8005BED4
K : clear_pci_ide_interrupts: port[F032] = 20 -> 20; port[F03A] = 20 -> 20
Intel videocard detected, PciId=8086:0F31, which is unknown
K : has_ownership
K : HCSPARAMS=00200008, HCCPARAMS=00036881
K : Attach Interrupt 11 Handler 80B1E8E6
K : EHCI controller at 00:E8 with 8 ports initialized
K : Attach Interrupt 1 Handler 80032DF0
K : IRQ1 return code 8005BEFC
K : Attach Interrupt 12 Handler 80B2C546
L: /SYS/LOADDRV Param: RDC
L: /SYS/NETWORK/NETCFG Param: A
RTL8169: Loading driver
RTL8169: Hooking into device, dev:0, bus:3, irq:4, addr:0000E000
RTL8169: probe
RTL8169: init_board
RTL8169: init_board: TxConfig & 0x7c800000 = 0x4C000000
RTL8169: init_board: chipset=2
RTL8169: MAC = D0-50-99-37-A6-DF
RTL8169: hw_PHY_config: priv.mcfg=3, priv.pcfg=1
L: /SYS/NETWORK/ZEROCONF Param:
Zero-config service loaded
L: /SYS/MEDIA/PALITRA Param: H 007DCEDF 003C427F
L: /SYS/@PANEL Param:
L: /SYS/@DOCKY Param:
L: /SYS/SETUP Param: BOOT
RTL8169: Set MAC Reg C+CR Offset 0x82h = 0x01h
L: /SYS/@ICON Param:
RTL8169: auto-negotiation complete
RTL8169: resetting
RTL8169: init_ring
RTL8169: hw_start
RTL8169: Attaching int handler to irq 4
K : Attach Interrupt 4 Handler 80B3E558
RTL8169: Waiting for chip to reset... RTL8169: done!
RTL8169: Set MAC Reg C+CR Offset 0xE0: bit-3
L: /SYS/@SS Param: ASSM
L: /SYS/TMPDISK Param: A0
RTL8169: set_rx_mode
trying to add disk
its size is not specified, 10% from free RAM will be used
new DiskSize: 250 MB
operation completed successfully
RTL8169: init OK!
RTL8169: INT
RTL8169: Device: 80B3A000 Status: 0820
L: /SYS/SEARCHAP Param:
Trying to contact DHCP server
RTL8169: Transmitting packet, buffer:80B7A000, size:304
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008
RTL8169: Using TX desc: 80B3A100
No answer from DHCP server
RTL8169: Transmitting packet, buffer:80B36000, size:304
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008
RTL8169: Using TX desc: 80B3A110
No answer from DHCP server
RTL8169: Transmitting packet, buffer:90657000, size:304
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008
RTL8169: Using TX desc: 80B3A120
No answer from DHCP server
RTL8169: Transmitting packet, buffer:80B91000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A130
Link Local IP assigned: 169.254.158.10
RTL8169: Transmitting packet, buffer:90658000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A100
RTL8169: Transmitting packet, buffer:90659000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A110
RTL8169: Transmitting packet, buffer:9065A000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A120
Searchap: additional partition is not found!
L: AUTORUN.DAT processed
RTL8169: Transmitting packet, buffer:80B8E000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A130
RTL8169: Transmitting packet, buffer:80B8F000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A100
Exiting
RTL8168_DEBUG_LOG.TXT (4,393 bytes)

yogev_ezra

2015-01-09 20:47

manager

RTL8168_DEBUG_LOG2.TXT (4,339 bytes)
K : using mwait for idle loop
K : kernel SVN r5365
K : 4 CPU detected
K : IDE controller programming interface 0001018A
K : BAR0 IDE base addr 01F0
K : BAR1 IDE base addr 03F4
K : BAR2 IDE base addr 0170
K : BAR3 IDE base addr 0374
K : BAR4 IDE controller register base addr F030
K : IDE Interrupt 0A
K : Channel 1 Disk 0
K : Dev: ST31500341AS
K : PIO possible modes 03
K : PIO set mode 01
K : Multiword DMA possible modes 07
K : Multiword DMA set mode 00
K : Ultra DMA possible modes 7F
K : Ultra DMA set mode 05
K : Channel 1 Disk 1
K : Device not found
K : Channel 2 Disk 0
K : Dev: HL-DT-ST DVDRAM GH22NS50
K : PIO possible modes 03
K : PIO set mode 00
K : Multiword DMA possible modes 07
K : Multiword DMA set mode 00
K : Ultra DMA possible modes 3F
K : Ultra DMA set mode 05
K : Channel 2 Disk 1
K : Device not found
K : IDE CH1 DMA enabled
K : IDE CH2 PIO, because ATAPI drive present
K : Attach Interrupt 14 Handler 8003198C
K : Set IDE IRQ14 return code 8005BEC0
K : Attach Interrupt 15 Handler 800319CC
K : Set IDE IRQ15 return code 8005BED4
K : clear_pci_ide_interrupts: port[F032] = 20 -> 20; port[F03A] = 20 -> 20
Intel videocard detected, PciId=8086:0F31, which is unknown
K : has_ownership
K : HCSPARAMS=00200008, HCCPARAMS=00036881
K : Attach Interrupt 11 Handler 80B1E8E6
K : EHCI controller at 00:E8 with 8 ports initialized
K : Attach Interrupt 1 Handler 80032DF0
K : IRQ1 return code 8005BEFC
K : Attach Interrupt 12 Handler 80B2C546
L: /SYS/LOADDRV Param: RDC
L: /SYS/NETWORK/NETCFG Param: A
RTL8169: Loading driver
RTL8169: Hooking into device, dev:0, bus:3, irq:4, addr:0000E000
RTL8169: probe
RTL8169: init_board
RTL8169: init_board: TxConfig & 0x7c800000 = 0x4C000000
RTL8169: init_board: chipset=2
RTL8169: MAC = D0-50-99-37-A6-DF
RTL8169: hw_PHY_config: priv.mcfg=3, priv.pcfg=1
L: /SYS/NETWORK/ZEROCONF Param:
Zero-config service loaded
L: /SYS/MEDIA/PALITRA Param: H 007DCEDF 003C427F
L: /SYS/@PANEL Param:
L: /SYS/@DOCKY Param:
L: /SYS/SETUP Param: BOOT
RTL8169: Set MAC Reg C+CR Offset 0x82h = 0x01h
RTL8169: auto-negotiation complete
RTL8169: resetting
RTL8169: init_ring
RTL8169: hw_start
RTL8169: Attaching int handler to irq 4
K : Attach Interrupt 4 Handler 80B3E558
RTL8169: Waiting for chip to reset... RTL8169: done!
L: /SYS/@ICON Param:
RTL8169: Set MAC Reg C+CR Offset 0xE0: bit-3
L: /SYS/@SS Param: ASSM
RTL8169: set_rx_mode
L: /SYS/TMPDISK Param: A0
RTL8169: init OK!
trying to add disk
its size is not specified, 10% from free RAM will be used
new DiskSize: 250 MB
operation completed successfully
Trying to contact DHCP server
RTL8169: Transmitting packet, buffer:80B86000, size:304
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008
RTL8169: Using TX desc: 80B3A100
L: /SYS/SEARCHAP Param:
No answer from DHCP server
RTL8169: Transmitting packet, buffer:90656000, size:304
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008
RTL8169: Using TX desc: 80B3A110
No answer from DHCP server
RTL8169: Transmitting packet, buffer:90657000, size:304
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0008
RTL8169: Using TX desc: 80B3A120
No answer from DHCP server
RTL8169: Transmitting packet, buffer:80B85000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A130
Link Local IP assigned: 169.254.158.10
RTL8169: Transmitting packet, buffer:9065D000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A100
RTL8169: Transmitting packet, buffer:9065E000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A110
RTL8169: Transmitting packet, buffer:9065F000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A120
Searchap: additional partition is not found!
L: AUTORUN.DAT processed
RTL8169: Transmitting packet, buffer:80B8F000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A130
RTL8169: Transmitting packet, buffer:80B35000, size:60
RTL8169: To: FF-FF-FF-FF-FF-FF From: D0-50-99-37-A6-DF Type:0608
RTL8169: Using TX desc: 80B3A100
Exiting
RTL8168_DEBUG_LOG2.TXT (4,339 bytes)

yogev_ezra

2015-01-09 23:01

manager   ~0000169

Tried the PING test for around 5 minutes - 0 ARP packets received.

Issue History

Date Modified Username Field Change
2015-01-09 13:54 yogev_ezra New Issue
2015-01-09 13:54 yogev_ezra Status new => assigned
2015-01-09 13:54 yogev_ezra Assigned To => hidnplayr

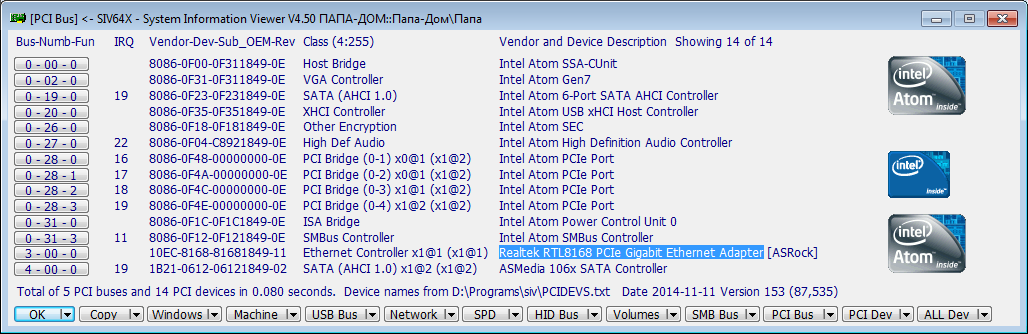

2015-01-09 13:54 yogev_ezra File Added: ScreenShot007.png
2015-01-09 13:55 yogev_ezra File Added: SIV_Q2900-ITX.7z
2015-01-09 20:47 yogev_ezra File Added: RTL8168_DEBUG_LOG.TXT
2015-01-09 20:47 yogev_ezra File Added: RTL8168_DEBUG_LOG2.TXT
2015-01-09 23:01 yogev_ezra Note Added: 0000169
