View Issue Details Jump to Notes ] Issue History ] Print ]
IDProjectCategoryView StatusDate SubmittedLast Update
0000084Kolibri OS (trunk)[All Projects] Kernelpublic2014-05-04 12:572015-08-28 22:04
ReporterPaulePanter
Assigned To
PrioritynormalSeveritymajorReproducibilityalways
StatusclosedResolutionno change required
PlatformOSOS Version
Product VersionSVN build / автосборка SVN
Target VersionFixed in Version
Summary0000084: USB and PS/2 mouse and keyboard not working with coreboot/SeaBIOS
DescriptionUsing the ASRock E350M1 with coreboot and SeaBIOS and `kolibri.img` from `latest-distr.7z` from May 1st (so *no* KolibriOS-A), loading KolibriOS from hard drive with GRUB 2, I am able to see the desktop, but the keyboard and mouse are not working. I tried USB and PS/2 to no avail.

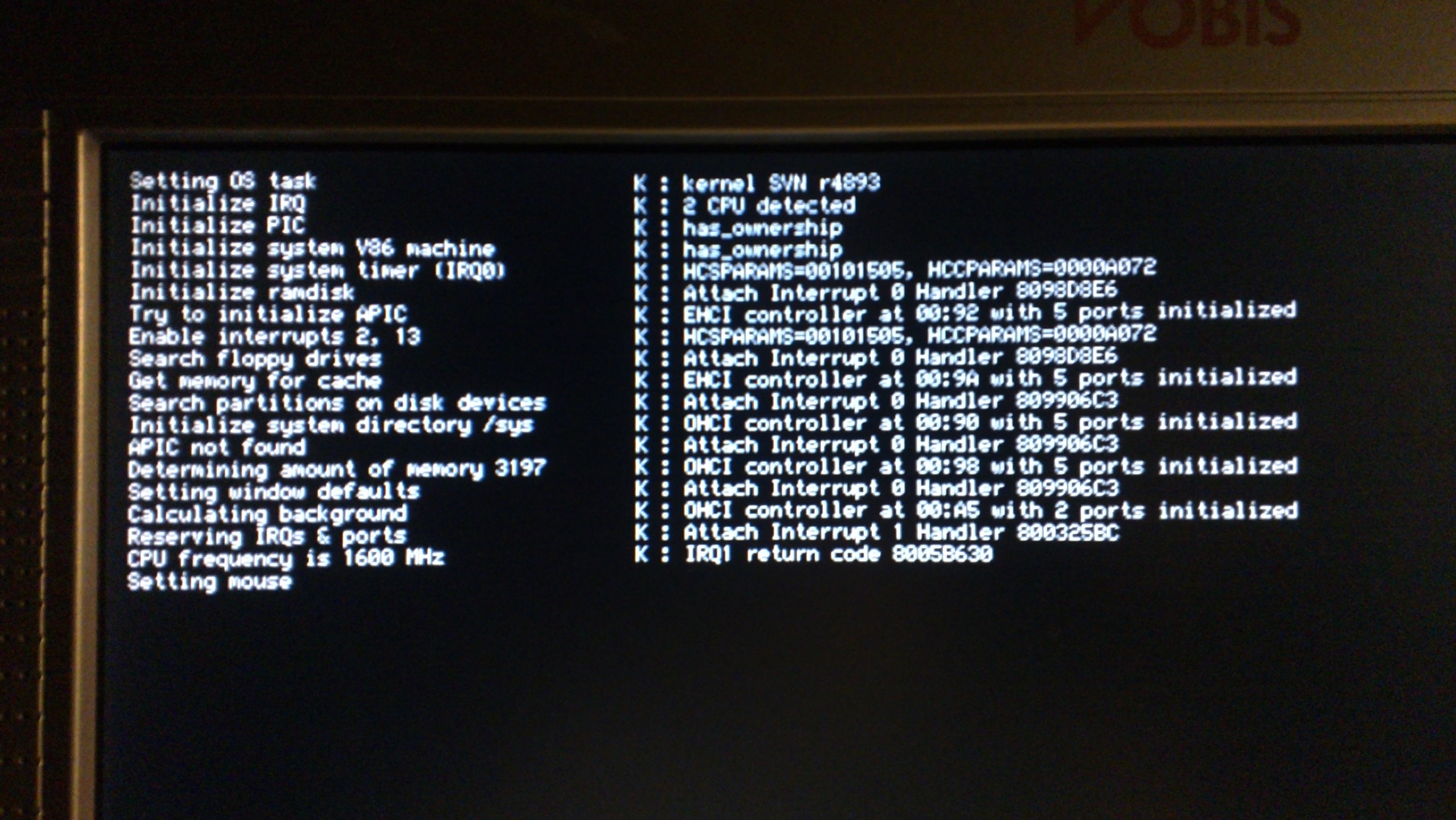

Putting the kernel messages on screen I was able to see.

K : failed to load driver OHCI
K : failed to load driver EHCI
K : failed to load driver OHCI
K : failed to load driver EHCI
K : failed to load driver OHCI
TagsNo tags attached.
SVN revision / ревизия SVN
Type of distribution / Тип дистрибутиваimg / образ дискеты

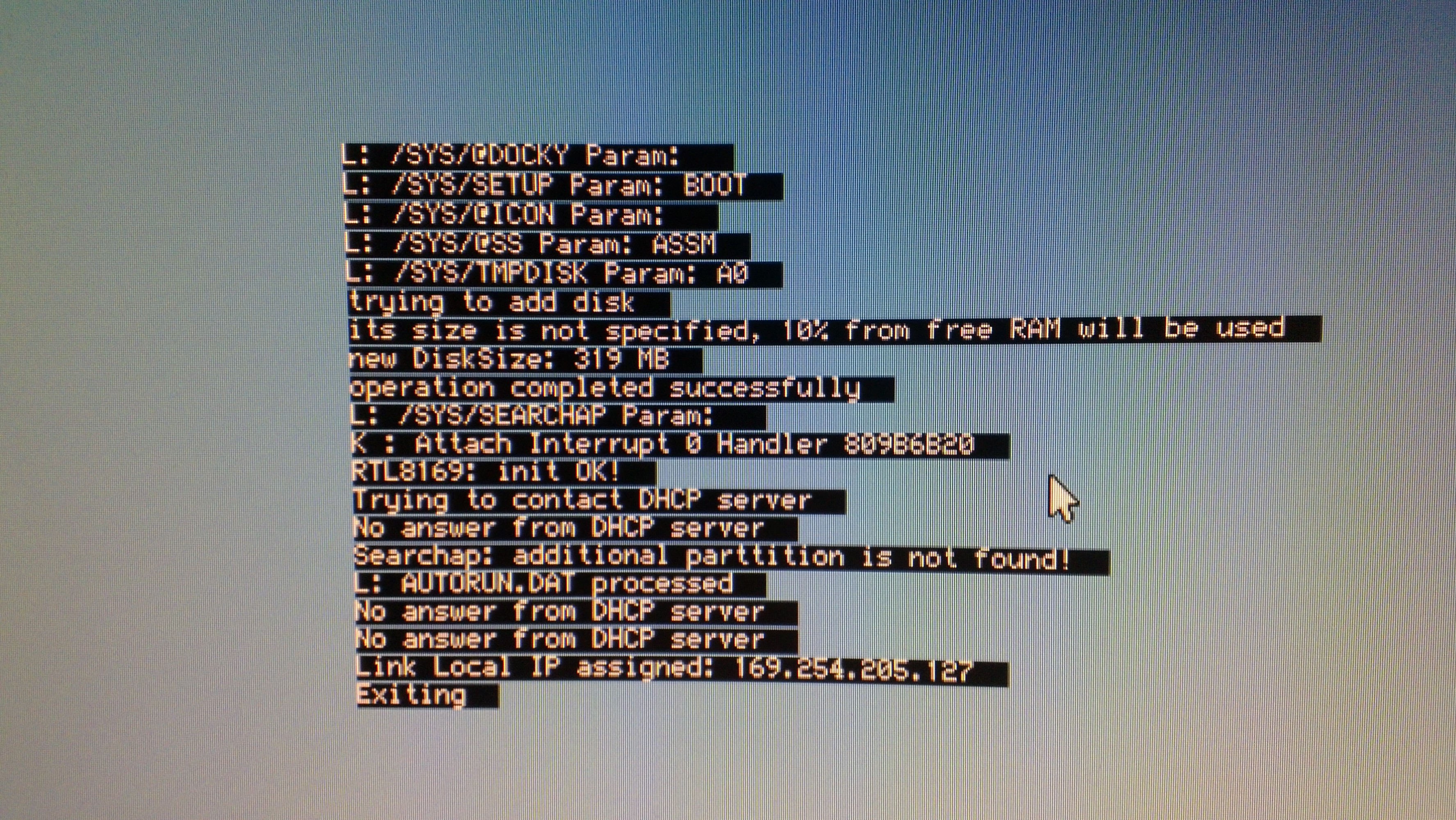

Attached Filesjpg file icon 14050002.jpg [^] (1,121,786 bytes) 2014-05-04 21:54
jpg file icon 14050004.jpg [^] (2,205,072 bytes) 2014-05-04 21:55

- Relationships

-  Notes
(0000164)
PaulePanter (updater)
2014-05-17 10:51

It turns out that coreboot does not set up the Programmable Interrupt Controller (PIC) correctly. With a patch posted to the coreboot mailing list by Scott Duplichan the USB keyboard and mouse work. There are some other issues, which should be reported separately though.

1. The PS/2 do not work yet but that might be some other shortcoming of coreboot.

2. Sometimes the USB devices do not work and have to be replugged. That is probably some timing issue.

3. There are some patches adding APIC support to KolibriOS. When these are added KolibriOS should work on more systems with coreboot.

So I mark this issue as “no change required”, which hopefully closes this issue and hopefully I’ll have time to report the other issues separately.

[1] http://www.coreboot.org/pipermail/coreboot/2014-May/077918.html [^]

- Issue History
Date Modified Username Field Change
2014-05-04 12:57 PaulePanter New Issue
2014-05-04 21:54 PaulePanter File Added: 14050002.jpg
2014-05-04 21:55 PaulePanter File Added: 14050004.jpg
2014-05-17 10:51 PaulePanter Note Added: 0000164
2014-05-17 10:51 PaulePanter Resolution open => no change required
2015-08-28 22:04 dunkaist Status new => closed
